Dec 8, Sontu SONTU100‑RAD(m) X‑ray Radiography System (DR)
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75

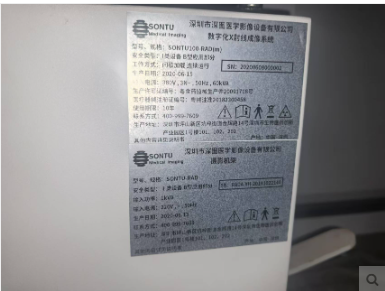

Manufacture Date: June 15, 2020Equipment Condition: Good
Product Specifications
Detector pixel size: ≤140 μm
Dynamic range: ≥14 bit
Ultimate spatial resolution: ≥3.4 Lp/mm
Focal spot power: 50 kW
High‑frequency high‑voltage generator power: ≥50 kW
FID lifting distance of tube column: ≥1200 mm
Patient table load‑bearing capacity: ≥130 kg
SID movement range of tube column: 1000‑1800 mm
Tube anode rotation speed: 2700 rpm (50 Hz)
Detector lifting travel of vertical Bucky stand: ≥1100 mm
Product Advantages
Dual‑band wireless transmissionAdopts 802.11n 2.4 GHz / 5 GHz dual‑band wireless transmission with speed up to 300 Mbps for instant image transfer. Both wireless and wired transmission modes are supported for flexible operation.
Spill‑proof sealed designHigh‑capacity battery supports over 100 continuous exposures after full charge. Equipped with anti‑collision rubber corners and superior spill‑proof sealing, suitable for various complex indoor and outdoor working conditions.
High sensitivityDelivers excellent spatial resolution, outstanding dynamic range, low radiation dose, ultra‑low noise, stable long‑term performance and strong environmental adaptability.
Robust & durableThe table is manufactured with high‑precision CNC machining and modular moulded components. It features high standardization, compact and reasonable structure, high reliability and elegant appearance with advanced workmanship.
Innovative mechanical designUltra‑thin flat‑panel housing protects the detector in clinical use. Sleek modern appearance brings superior user experience.
