GE Logiq P5 Color Doppler Ultrasound System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75

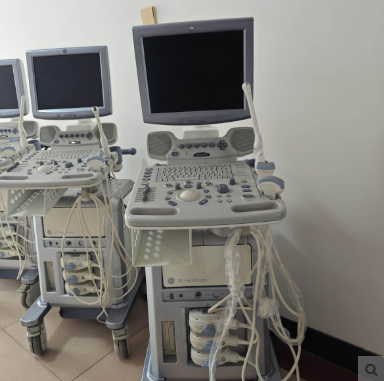

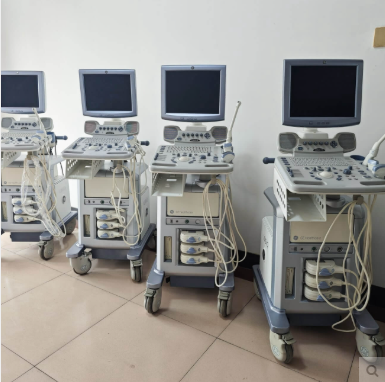

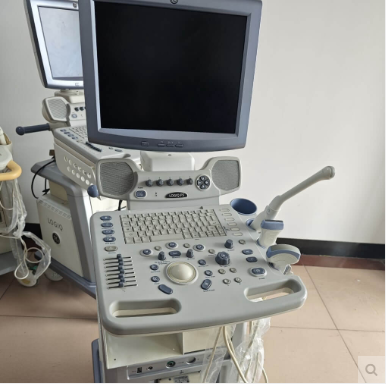

GE Logiq P5 delivers 4D obstetric imaging and is compatible with 29 types of transducers. It supports gynecology, musculoskeletal, cardiovascular, abdominal and other general imaging applications. This GE ultrasound system features a 15‑inch LCD monitor mounted on a Swile stand for optimal viewing, together with a full‑size keyboard for convenient operation. It adopts the latest SRI algorithm to deliver high‑quality 4D imaging and improved image quality. Powered by the TruScan architecture, ultrasound images can be easily exported to a USB drive or transmitted via the DICOM hospital network.
GE Voluson P8 Specifications:General
Brand: GE
Model: Voluson P8
Category: Ultrasound equipment
Built‑in peripheral storage
Dimensions
Height (adjustable): 135‑141 cm
Width: 43 cm
Depth: 64 cm
Weight: 74.8 kg
Monitor
Size: 38.1 cm
Type: TFT LCD
Format: XGA
Resolution: 1024 × 768 pixels
Record area: 800 × 800
Adjustable: Yes, tilt / rotate
Brightness / Contrast: digitally adjustable
Power Supply
Voltage: 100‑120Vac or 220‑240Vac
Frequency: 50/60 Hz
Power: Max. 750 VA with built‑in and on‑board peripherals
Maximum heat output: 2200 BTU/hour
Operating Modes
B‑mode
M‑mode
Beam steering
SRI
Elastography (optional)
Anatomical M‑mode (optional)
Color Flow Mode (CFM)
Power Doppler Imaging (PDI) with direction map
Pulsed Doppler with high pulse repetition frequency (PRF)
B‑Flow (optional)
Guided Continuous‑Wave Doppler (optional)
Dedicated Continuous‑Wave Doppler (optional)
Coded Contrast Imaging (optional)
3D/4D Volume Mode (optional)
Functions
Full‑size keyboard with user‑programmable keys
Auto Optimization (AO)
Speckle Reduction Imaging (SRI)
3D/4D imaging
TruScan architecture
TruAccess raw data processing
SmartScan
ComfortScan
