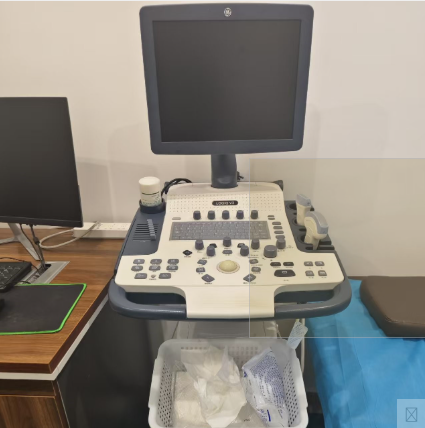

GE Logiq V3 Color Doppler Ultrasound System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Manufacture Date: March 2021
The GE LOGIQ V3 is a compact, reliable 2D ultrasound system engineered for clinics and small‑scale hospitals. It delivers crisp 2‑dimensional images, with optional color Doppler and basic 3D imaging capabilities. Featuring user‑friendly operation, versatile transducer options and consistent performance, it provides an efficient, cost‑effective solution for routine clinical examinations.
Basic Configuration of this 2D Color Doppler Ultrasound System
Display: 15‑inch high‑resolution LED monitor
Transducer Ports: 2 active transducer connectors
Imaging Modes: B‑mode, M‑mode, Pulsed‑Wave Doppler (optional), Color Doppler (optional), simplified 3D imaging (optional)
Maximum Scan Depth: ≥ 33 cm
Transducer Frequency Range: Approximately 1.7‑13 MHz (varies by transducer model)
Image Controls: Adjustable TGC (≥ 8 segments), gain and focus adjustment
Image Playback: Up to 5,000‑frame grayscale cine memory; ≥ 60‑second playback duration
Clinical Applications: Abdomen, obstetrics‑gynecology, musculoskeletal, small‑parts, urology, breast, vascular (transducer‑dependent)
Key Features of this Dependable 2D Ultrasound Unit
Advanced imaging tools boost diagnostic confidence. Sophisticated technologies generate clear diagnostic images:MLA4 technology processes echoes across four simultaneous receive beams to quadruple frame rates, ideal for evaluating moving organs and blood‑flow data.Real‑time Speckle Reduction Imaging (SRI‑HD) suppresses noise while preserving genuine tissue texture.CrossXBeam* imaging employs compound imaging to sharpen tissue interfaces and border differentiation.Coded Harmonic Imaging improves near‑field resolution for small‑part examinations.B‑Steer facilitates visualization of deep blood vessels and angulated structures such as tendon insertions.
Support advanced clinical assessments to enable confident diagnosis across multiple applications:Anatomical M‑mode permits anatomical measurements in non‑standard scan planes.LOGIQ View delivers real‑time panoramic imaging for long anatomical structures that cannot fit within a single field‑of‑view.Virtual Convex Imaging extends field‑of‑view when using linear and sector transducers.Easy 3D technology captures free‑hand 3D datasets for volumetric anatomical visualization.
