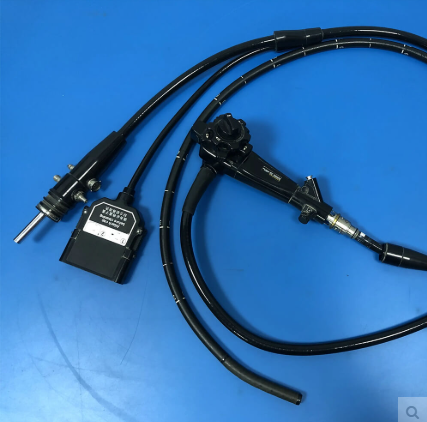

Pentax 38‑I10F Electronic Colonoscope
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Technical Specifications
Dimension Parameters: Insertion tube outer diameter: 13.2 mm; maximum insertion tube width: 14.3 mm; instrument channel inner diameter: 3.8 mm; working length of insertion tube: 1500 mm; total length: 1816 mm.
Field of View & Depth of Field: Lens field‑of‑view: 140°; depth‑of‑field range: 4‑100 mm.
Bending Angles: Up‑bending: 180°, down‑bending: 180°, left‑bending: 160°, right‑bending: 160°.
Compatibility: Compatible with processors including EPK‑i, EPK‑i5000, EPK‑i7000 and EPK‑i7010.
Product Features
High‑definition image quality: Equipped with new‑generation megapixel CCD, it greatly improves HD+ image performance. Endoscopic images are sharp, clear and bright for better visualization of mucosal surface structures.
Wide‑angle design: 140° wide field‑of‑view delivers broad vision to assist physicians in comprehensive gastrointestinal assessment.
Superior bending performance: Enables flexible navigation through curved gastrointestinal segments for thorough examinations.
Versatile therapeutic options: Optimized outer‑diameter‑to‑instrument‑channel ratio and water‑jet system address routine clinical challenges. Biopsy forceps are supported to collect tissue samples during observation for pathological examination.
Gradually‑Degrading‑Flexibility (GDF) technology: Enhances insertion‑tube flexibility to reduce patient discomfort and improve examination performance.
Optimized control body: Lighter weight and refined dimensions to meet physicians’ operational demands during complex procedures.
