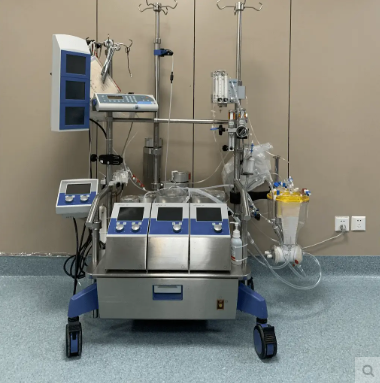

LivaNova S5 Heart‑Lung Machine
The LivaNova S5 heart‑lung machine is an advanced extracorporeal circulation system trusted by cardiac teams worldwide. Built with a flexible modular design, it supports up to five roller pumps and enables seamless integration with centrifugal pumps such as the CP5. The S5 delivers precise control, real‑time monitoring and enhanced safety features including bubble detection and an automatic clamping system. Its touch‑screen interface, multi‑language support and compact footprint make it ideal for both adult and pediatric cardiac procedures. Manufactured in Germany, it offers durability, accuracy and reliable performance even during the most complex heart surgeries.
Technical Specifications of LivaNova S5 Heart‑Lung Machine
Control Mode: PC‑independent MCU with CAN‑bus system
Roller Pump Specifications
150 mm single pump, 85 mm dual pump (operable independently or synchronously)
Rotational speed range: 0‑250 rpm; Accuracy: ±1%
Adjustable pump head angle: 180° for single pump; 240° for dual pump, in 15° increments
CP5 centrifugal pump with flow regulation and ERC bubble / back‑flow protection
Dimensions & Weight
Main unit height × depth: 64 cm × 60 cm
Width: 74.5 cm (3‑pump); 89 cm (4‑pump); 107.3 cm (5‑pump)
Weight: 83.4 kg (3‑pump); 86.3 kg (4‑pump); 89.5 kg (5‑pump)
Safety Features
ERC automatic clamping protection: Automatically cuts off arterial flow upon detection of back‑flow, bubbles or abnormal liquid level
Color‑coded alarm system for fast fault identification
Easy maintenance: Replaceable panels, UPS support, manual maintenance procedures. Refer to IFU for full details.
