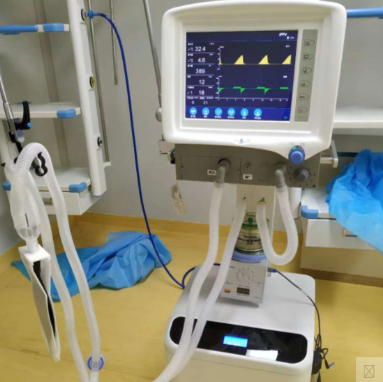

Superstar S1100 Critical Care Ventilator
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
This ventilator delivers outstanding performance in operating rooms, ICU wards and emergency departments. It is designed to assist or replace spontaneous breathing for adult, pediatric and neonatal patients. With 25‑years of market‑driven ventilator expertise, we are professional and reliable to meet all your ventilation requirements. Featuring flexible configurations, superior quality and highly competitive pricing, the S1100 has quickly become a market‑preferred model.
Superstar S1100 ICU Ventilator Specifications
Ventilation Modes
IPPV, V‑A/C, P‑AC, P‑SIMV, V‑SIMV, PCV, PSV, SPONT/CPAP, PRVC (optional), APRV (optional), DuoLevel (optional), SIGH, MANU
Ventilator Parameters
Tidal Volume (Vt): 0.20‑2000 mL
Frequency (Freq): 1‑100 bpm
Oxygen Concentration: 21%‑100%
I:E Ratio: 4:1 ~ 1:8
PEEP: 0 cmH₂O‑40 cmH₂O
Pressure Limit: 20 cmH₂O‑100 cmH₂O
Pressure Trigger Sensitivity (Pt): −20 cmH₂O‑0 cmH₂O (based on PEEP)
Flow Trigger Sensitivity (Ft): 0.5‑30 cmH₂O
Sigh: 0 (Off), 1/100‑5/100 breaths
Apnea Ventilation: Off, 5‑60 s
Monitored Parameters
Frequency (Freq): 0‑100 bpm
Tidal Volume (Vt): 0‑2500 mL
Minute Ventilation: 0‑99 L/min
Airway Pressure: 0‑100 cmH₂O
Dynamic Compliance Monitoring: 1‑1000 mL/cmH₂O
Oxygen Concentration: 15%‑100%
Alarms & Protections
AC power failure alarm
Power loss or disconnection alarm
Low‑voltage alarm for built‑in backup battery: ≤11.3±0.3 V
No‑tidal‑volume alarm: no tidal volume detected for 6 seconds
High minute‑ventilation alarm: 5‑99 L/min
Low minute‑ventilation alarm: 1‑30 L/min
High airway‑pressure alarm: 20‑100 cmH₂O
Low airway‑pressure alarm: 0‑20 cmH₂O
High oxygen‑concentration alarm: 19%‑100%
Low oxygen‑concentration alarm: 18%‑99%
Continuous pressure alarm: pressure stays at (PEEP+1.5 cmH₂O) for 16 seconds
Apnea alarm: 5‑60 s
Fan failure: on‑screen indication
Oxygen shortage: on‑screen indication
Max pressure limit: ＜12.5 kPa
Operating Conditions
Gas Source: O₂, Air
Gas Pressure: 280‑600 kPa
Voltage: 220 V±22 V
Power Frequency: 50 Hz±1 Hz
Input Power: 900 VA (with air compressor); 250 VA (without air compressor)
Waveforms
P‑T (Pressure‑Time)
F‑T (Flow‑Time)
P‑V Loop (Pressure‑Volume Loop)
