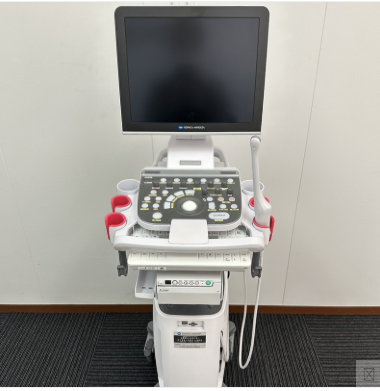

Hitachi‑Siemens SONOVISTA GX30 Color Doppler Ultrasound System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Brand Name: SONOVISTA (launched by Mochida‑Siemens)Design Participant: Konica Minolta took part in the industrial appearance design of SONOVISTA GX30.Manufacturer / Lead Company: Mochida Siemens Medical (now merged into Siemens Japan)
Display: 15‑inch touch‑screen monitor with 270° rotation and height adjustment for flexible operation.
Dimensions & Weight:
Width: approx. 39 cm
Depth: approx. 55 cm
Height: approx. 122‑133 cm (adjustable)
Weight: approx. 60 kg
Power Requirement: 100V, 50/60Hz, 4.8A‑2.0A
Transducer Configuration:Standard transducers:
C5‑2: Convex array transducer for abdominal examinations.
EC9‑3: Endocavity transducer with 220° field‑of‑view angle.
Image Modes & Functions:Supported image modes:
B‑mode (2D grayscale)
M‑mode (motion mode)
Color Doppler
Power Doppler
PW Doppler
Image‑processing Technologies:
iXRET: Resolution‑enhancing image‑processing technology for improved image clarity.
T²HI (Triad Tissue Harmonic Imaging): Delivers high‑quality tissue harmonic imaging leveraging broadband transducer characteristics.
Dual Sonic: Transmits two waveforms according to focal depth to optimize image quality.
SNV (Simple Needle Visualization): Automatically detects needle insertion, supporting both in‑plane and out‑of‑plane procedures.
Vascular NAVI: Automatically adjusts ROI, Doppler cursor position, gate size, angle correction and steering angle to facilitate blood‑flow measurement.
Other Configurations & Features:Supplied accessories:
UP‑X898MD: Sony black‑and‑white thermal printer
AC power cord
Design Features:
Compact footprint, suitable for clinical environments with limited space.
Vertically adjustable and rotatable control panel for intuitive and efficient operation.
Transducer connectors housed inside side cover for easy cleaning.
