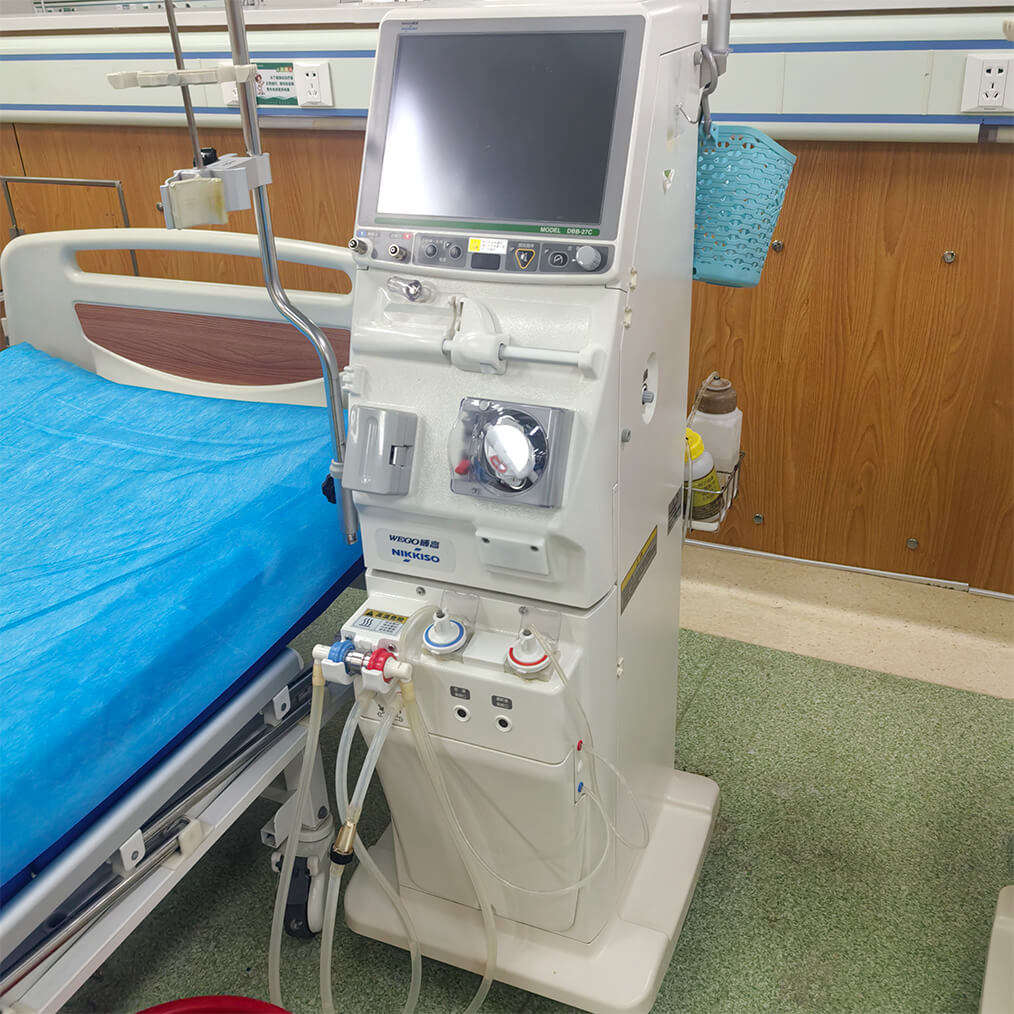

WEGO DBB-07 Dialysis Machine
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Specifications of WEGO DBB‑07
Electrical & Water Supply Parameters
Power supply: AC 220V (±10%), frequency 50‑60Hz (±5Hz)
Water supply: Inlet water pressure 0.7‑3 bar; inlet water temperature 5‑30 ℃
Blood Parameters
Blood flow rate: 0 or 40‑600 mL/min
Arterial pressure: ‑300 ~ +300 mmHg, accuracy ±10 mmHg
Venous pressure: ‑200 ~ +500 mmHg, accuracy ±10 mmHg
Transmembrane pressure (TMP): ‑100 ~ +500 mmHg, accuracy ±10 mmHg
Air detection: Ultrasonic detection, maximum detection accuracy up to 0.0003 mL
Heparin injection: Dosing rate 0.0 mL/h (no specified maximum value); compatible with 10 mL, 20 mL, 30 mL syringes. High‑dose administration: 10‑1500 mL/h, continuous injection supported; pre‑stop time for heparin can be set.
Dialysate Parameters
Dialysate temperature: Adjustable from 33‑40 ℃
Dialysate pressure: ‑600 ~ +600 mmHg, accuracy ±10 mmHg
Dialysate flow rate: 300‑700 mL/min, continuously adjustable in 1 mL increments
‑ B‑solution conductivity measurement range: 0.0‑8.0 mS/cm‑ Blood leak detection: Photoelectric dual‑color (red‑green) light detection, sensitivity ≤0.35 mL/min
