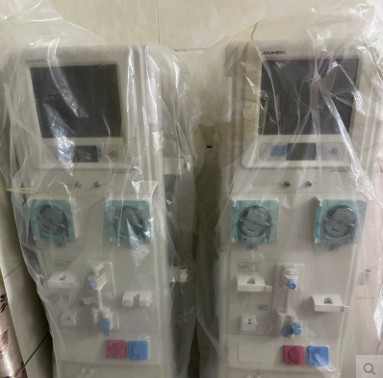

Joyheal JHM‑2028A Hemodialysis Machine

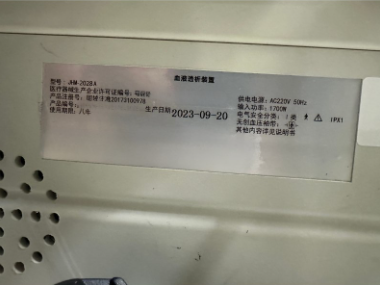

Manufacture Date: Sep 01, 2023Condition: New stock unitPrice: USD 2,000 per unit
Basic Configuration
‑ 10‑inch LCD touch screen for real‑time system status and parameter display‑ Therapy triggered by automatic blood detection; integrated self‑test, priming, disinfection and treatment functions‑ Comprehensive safety monitoring: conductivity, temperature, air bubble, blood leakage, arterial, venous and transmembrane pressure‑ High‑precision ultrafiltration control with dual‑loop water circuit. Programmable Na⁺/UF/HCO₃⁻ profiles; Kt/V value calculation available
Technical Specifications
‑ Dimensions: 370 × 340 × 1420 mm‑ Weight: approx. 90 kg‑ Power supply: AC 220 V ±10% (110 V optional)‑ Blood pump flow rate: 20‑460 mL/min (6 mm tubing) 20‑620 mL/min (8 mm tubing)‑ Heparin pump flow rate: 0.1‑10 mL/h‑ Syringe capacity: 10 mL / 20 mL / 30 mL or 20 mL / 30 mL / 50 mL‑ Ultrafiltration flow rate: 0‑4000 mL/h‑ Dialysate flow rate: 300‑800 mL/min, linearly adjustable‑ Blood leakage detection: detects >1 mL blood per liter of dialysate at 500 mL/min flow‑ Sodium (Na⁺) adjustment: supported‑ Kt/V function: supported‑ Bicarbonate powder cartridge: optional‑ HCO₃⁻ adjustment: for acidosis in patients with severe metabolic disorders‑ Calibration: adjustable according to patient condition‑ Networking: centralized monitoring for multiple units supported
Key Features
‑ 10‑inch user‑friendly LCD touch screen‑ Automatic self‑test, priming and disinfection cycles‑ Accurate ultrafiltration (UF) control system‑ Real‑time monitoring of arterial pressure, venous pressure and transmembrane pressure (TMP)‑ Air bubble detector and blood leakage monitoring system‑ Adjustable sodium (Na⁺), bicarbonate (HCO₃⁻) and ultrafiltration profiles‑ Built‑in Kt/V evaluation function‑ Optional backup battery for emergency use‑ Compact and stable design, suitable for dialysis centers
