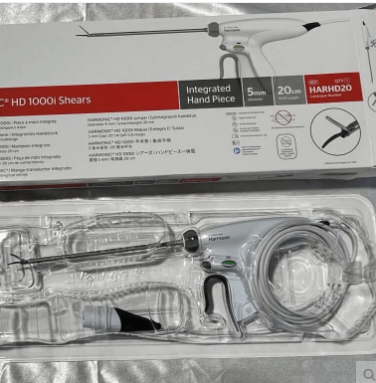

Johnson & Johnson HD 1000i Ultrasonic Scalpel
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
HARMONIC HD 1000i Ultrasonic Scalpel
The HARMONIC HD 1000i is a high‑performance ultrasonic surgical instrument integrating cutting, coagulation, clamping and blunt dissection functions. Designed for major open or laparoscopic procedures, it delivers enhanced tissue control, broader sealing range and faster operational efficiency. Used together with the GEN11 ultrasonic energy platform, it is applicable to a wide variety of surgical operations.
Basic Specifications of HARMONIC® HD 1000i Scissor‑type Ultrasonic Scalpel
Blade Diameter: 5 mm (for minimally‑invasive procedures such as laparoscopy)
Available Lengths: 20 cm (open surgery), 36 cm (laparoscopic surgery)
Tip Profile: Curved tip for convenient dissection
Disposable, latex‑free; 6 pieces per box
Superior Performance of Ultrasonic Scalpel
Cutting & Sealing Capacity
Blade length: 18 mm; suitable for vessels ≤7 mm in diameter
Under advanced hemostasis mode, sealing strength for 5‑7 mm vessels reaches 150‑160 % versus reference products, with burst pressure up to approx. 1878 mmHg
Cutting Efficiency
For 3‑5 mm vessels, cutting speed is 35 % higher than the previous‑generation device; under advanced hemostasis mode, improvement reaches approx. 40 %.
Average time for cutting 20‑cm mesenteric tissue: 2.22 seconds, 33 % faster versus LigaSure (which takes 3.30 seconds).
Structural Advantages
Wider and flatter blade with optimized curvature for improved tissue grasping and dissection.
Mechanism mimics mechanical dissector to reduce instrument exchanges.
Modes & Compatibility
Advanced Hemostasis Mode
Optimized for 7‑mm vessels. Activates only upon full closure; audible alert signals completion of one working cycle.
Adjustable Energy Levels
Default level: 5; adjustable from level 1 to 5. Level 3 is recommended for liver tissue.
Compatibility
Compatible with Ethicon GEN11 generator and standard foot‑switch.
