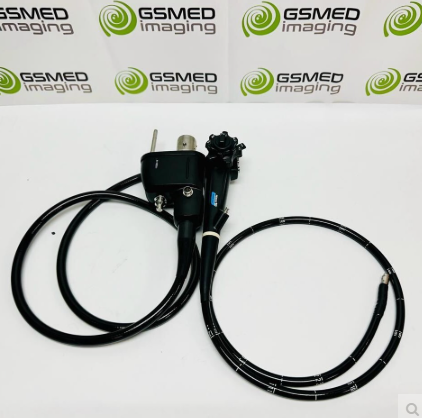

PENTAX 34‑I10T Endoscope
The PENTAX 34‑I10T is an HD+ grade duodenoscope manufactured by PENTAX. It is designed for digestive system procedures, especially for endoscopic retrograde cholangiopancreatography (ERCP) examinations and therapies.
Main Features of Pentax 34‑I10T
High‑definition imaging: Equipped with HD+ imaging system to capture fine mucosal details for more accurate diagnosis and treatment.
Removable distal cap design: The detachable tip cap facilitates cleaning and disinfection, lowering cross‑infection risks.
Ergonomics & optimized handling: Light‑weight and durable control handle with redesigned elevator mechanism, improving stability and precision during ERCP operations.
Endoscope dimensions & deflection angles: Field‑of‑view approx. 100° (10° folded rear field); anteversion angle up to 120°, retroversion angle up to 90°; insertion tube outer diameter approx. 11.6 mm; working channel diameter approx. 4.2 mm.
Specifications for Pentax 34‑I10T
Optical system: High‑resolutionEffective length: 1,250 mm (49.2 inch)Working channel diameter: 4.2 mm (0.2 inch)Field of view: 100°Observation direction: 100°Angle range: 90°, 105°, 120°
