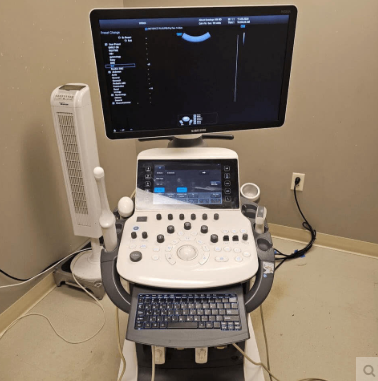

Samsung Medison WS80A Color Doppler Ultrasound System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Samsung Medison WS80A is an advanced ultrasound system engineered for precise imaging. Equipped with high‑resolution 3D/4D capabilities, enhanced fetal assessment tools and intuitive workflow, it supports obstetrics, gynecology and general imaging. Its ergonomic design, sharp images and intelligent software make WS80A an ideal choice for accurate diagnosis and efficient clinical practice.
Specifications of Samsung WS80A Diagnostic Ultrasound System
Basic Dimensions & Weight
Height: 1430 ~ 1710 mm
Width: 557 mm
Depth: 791 ~ 860 mm
Weight with monitor: approx. 105.4 kg (232 lbs)
Power Supply
Voltage: 100‑240 V AC
Frequency: 50/60 Hz
Power Consumption
With peripherals: 714.7 VA
Without peripherals: 564.7 VA
Rated Current
110 V: 8.2 A
220 V: 4.1 A
Heat dissipation: 3207.8 BTU/hour
Safety Class
Ultrasound system: Class A
Transducer: Subject to individual transducer specifications
Key Features of Samsung WS80A Ultrasound System
CrystalLive™ 3D/4D Imaging Technology: Adopts High‑Definition Volume Imaging (HDVI™) and CrystalVue™ rendering to deliver lifelike 3D images with improved visualization of edges and tiny structures.
5D Ultrasound Functions: Auto‑detection and measurement tools including 5D Heart, 5D CNS and 5D Follicle imaging to boost accuracy in prenatal screening.
S‑Vue™ Smart Probe Technology: Enables wider bandwidth and higher sensitivity for crisp visualization across scanned regions.
SonoSync™ Real‑time Image Sharing: Supports real‑time image sharing, voice chat and annotation between physicians and sonographers for better collaboration.
Height‑adjustable control panel & 10.1‑inch touch screen: Flexible operation to reduce keystroke fatigue.
Endocavity probe holder & standard gel warmer: Convenient storage and access to improve workflow comfort.
Multi‑probe Compatibility: Works with over 20 ultrasound probes to cover diverse examination requirements.
