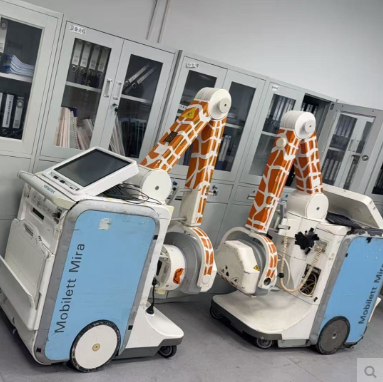

Siemens Mobilett Mira Mobile X‑ray Radiography System (DR)
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Mobilett Mira Max belongs to the MAX series. As medical institutions face increasingly tight resources, they have to improve radiology department operational efficiency. By combining two or more MAX systems, you can experience the MAX Effect: unique standardized management helps you save time and costs, and ultimately boost satisfaction.
Basic Specifications
Maximum Output Power: 35 kWMaximum Tube Current: 450 mADimensions (L × W × H): 113 cm × 59.5 cm × 157 cmSystem Weight: approx. 375 kg (827 lb)Focal Spot: Maximum height: 213.5 cm (84 inches)X‑ray Tube Arm: Maximum horizontal reach: 124.5 cm (49 inches)
Battery (Standard): 65 Ah standard; approx. 6 hours / 200 exposures (70 kV / 20 mAs); standby time: 12 hoursBattery (High‑power Option): 90 Ah; operating time: approx. 8 hours / 270 exposures (70 kV / 20 mAs); standby time: 16 hours
Image Processing: DiamondView Plus — enhances image sharpness and soft‑tissue contrast without dose modification.Detector Types: MAX wi‑D and MAX mini wireless detectors
MAX wi‑D DetectorSize: 35 cm × 43 cm × 1.9 cmWeight: 3 kg (6.6 lb)
MAX mini DetectorSize: 24 cm × 30 cm × 1.6 cmWeight: 1.6 kg (3.5 lb)
Detector Sharing: Detector sharing with other MAX systems via MAXswap is supported.
Features of Siemens MobileDR Mobilett Mira
‑ Deliver MAX‑level image quality under all conditions‑ Lightweight MAX detectors with powerful imaging performance‑ Flexible to handle various challenges‑ Outstanding arm travel range and precise motion control‑ Ready‑to‑use support at any time‑ Unique charging solution plus multiple detector replacement options
