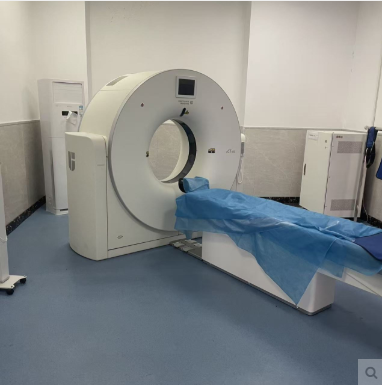

United Imaging uCT 520 40‑Slice CT Scanner System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
The uCT 520 features a 32‑row detector design with 40‑slice reconstruction capability to deliver high‑quality imaging.Boasting fast scanning speed, stable performance and low radiation dose, it is an ideal option for routine clinical applications including chest, abdomen and angiography examinations.
Technical Specifications
Tube Anode Heat Capacity: 2 MHUDetector: Z‑type detectorDetector Rows: 40Maximum Slices per Rotation: 80*Rotation Time: 0.75 sec/360°kV Settings: 70, 80, 100, 120, 140 kVGenerator Power: 42 kWGantry Aperture: 70 cmTable Weight Capacity: 205 kg
Features of United Imaging uCT 520
Gain insights ahead, empower intelligence.
The uCT 520 is engineered to make advanced technologies readily accessible for customers. Equipped with reliable components and multiple integrated premium applications, the system delivers outstanding financial performance.
Streamlined & Convenient Workflow
Intelligent automatic operations for personalized patient care.
Patient‑Centered Imaging
Comprehensive dose‑control technologies for optimized dose protocols.
Excellent Financial Performance
Reduced total cost of ownership.
Innovative Z‑Type Detector
High‑Quality MaterialsGadolinium Oxysulfide (GOS) scintillator enables fast and efficient X‑ray conversion.
Ultra‑Low‑Noise DesignThe highly‑integrated Z‑type detector greatly suppresses noise, yielding high‑quality images at low dose levels.
Fine SamplingFine voxel size enables clear visualization of anatomical details.
AI‑Powered Workflow for High Efficiency
EasyScan: Intelligently customizes scan protocols for individual patients.
EasyLogic: Minimizes waiting intervals between operations and substantially accelerates CT examination procedures.
High‑Performance Post‑Processing
The uCT 520 provides advanced post‑processing tools to boost diagnostic confidence.
Superior Image Quality
True 3D Cone‑Beam ReconstructionTrue 3D cone‑beam reconstruction algorithm generates high‑resolution 3D isotropic images.
KARL 3D Iterative DenoisingThis advanced algorithm operates simultaneously in projection and image domains to produce high‑quality low‑dose images.
Prudent Imaging
uDose 3D Dose ModulationuDose generates optimized 3D dose distribution plans for each scan based on anatomical information.
70 kV Scan ModeThe 70 kV scan mode improves signal‑to‑noise ratio (SNR), especially suitable for pediatric patients, contrast‑enhanced imaging and CT venography (CTV).
