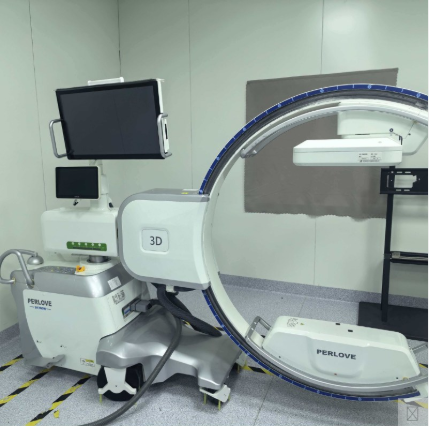

February 27, Pujie PLX7500 Mobile C‑Arm X‑ray System
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75

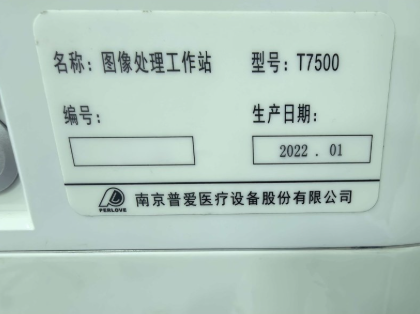

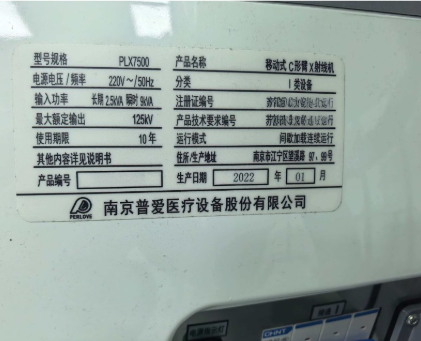

Date of Manufacture: January 2022Equipment Condition: GoodBasic Configuration: Original X‑ray Tube, Model Q175A
Perlove PLX7500 Technical Specifications
Product Name: 3D Mobile C‑Arm X‑ray SystemC‑Arm Opening: 900 mmRotation Angle: ±95° (Total rotation: 190°)3D Imaging Area: Φ180 mm × 180 mmDetector: 30 cm × 30 cm Dynamic Flat‑panel DetectorX‑ray Tube Heat Capacity: ≥650 kJFocal Spot: ≤0.6 mmFluoroscopy Current: Max ≥30 mADisplay Screen: 27‑inch Medical High‑Definition MonitorCore Functions: 2D Fluoroscopy / Radiography, 3D Volumetric Radiography, CT‑like Tomographic Scanning
Perlove PLX7500 Features
Isocentric 3D DesignStable isocentric movement without horizontal or vertical offset, ensuring precise imaging with minimal artifacts.
Large‑size C‑Arm OpeningMaximum opening of 900 mm delivers ample working space for various complex surgical procedures.
Wide 190° Rotation RangeC‑Arm rotation of ±95° (190° total), enabling multi‑angle fluoroscopy and 3D scanning.
30 cm × 30 cm Large Dynamic Flat‑panel DetectorLarge field‑of‑view for broader imaging coverage and reduced repeated exposures.
Large‑volume 3D Imaging3D imaging area Φ180 mm × 180 mm, supporting CT‑like slice display.
High‑performance X‑ray TubeFocal spot ≤0.6 mm for sharp imaging; heat capacity ≥650 kJ to guarantee stability during long‑duration surgeries.
Low‑dose High‑definition FluoroscopyMax fluoroscopy current ≥30 mA, balancing image quality and radiation safety.
Large High‑definition Screen27‑inch medical‑grade HD monitor for clear, comfortable intraoperative viewing.
Multi‑functional Operating ModesSupports 2D fluoroscopy, 2D radiography, 3D volume reconstruction and CT‑like imaging.
