Kangmei IPS710A Arthroscope
Generate QR code
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders over $75
Product description
Shipping & Return

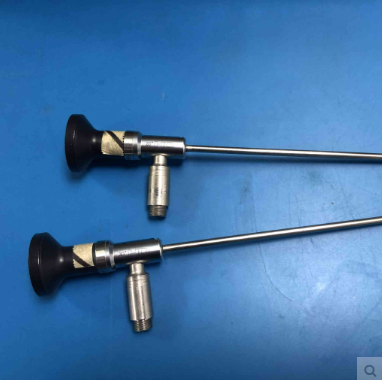

Linvatec (Kangmede) IPS710A Arthroscope
Brand: Linvatec, under KangmedeModel: IPS710AApplication: For minimally‑invasive reduction and internal fixation under knee arthroscopy, such as treatment of tibial plateau fractures.
Clinical Application:In a clinical study on patients with tibial plateau fractures, surgeons performed minimally‑invasive arthroscopic reduction and internal fixation with the IPS710A. The device was used for joint visualization and precise manipulation during surgery, demonstrating its valid performance in minimally‑invasive orthopedic procedures.
Basic Specifications
| Item | Details for IPS710A Arthroscope |
|---|---|
| Video recording resolution | Up to 1920×1080p @ 60Hz (1080P60) |
| Image capture | 1080p support for both static snapshots and video recording |
| Screen & operation | 3.5‑inch front‑panel TFT‑LCD display with front‑panel keys; compatible with external touch screen / mouse / keyboard |
| Video input interfaces | DVI, SDI, CVBS (composite video) |
| Audio & external control | Audio input and foot‑switch connection supported |
| Video output options | USB external hard drive, network drive, DTV, FTP and other multiple output modes |
Power & Physical Parameters
| Parameter | Value |
|---|---|
| Power input | AC 100‑240V, 50‑60Hz, max 0.6A |
| Max power consumption | 32.5 W |
| Dimensions (W × H × D) | 250×80×300 mm |
| Weight | 2.9 kg (approx. 6.4 lbs) |
